Data processing in the sheet metal process chain. Output for LVD machines.

Calculation base and output principle

The calculation for the output is based on the data maintained in the material and tool manager, the SPI Data Editor. The SPI add-in generates the flat pattern and provides appropriate output formats with all production-relevant data.

LVD

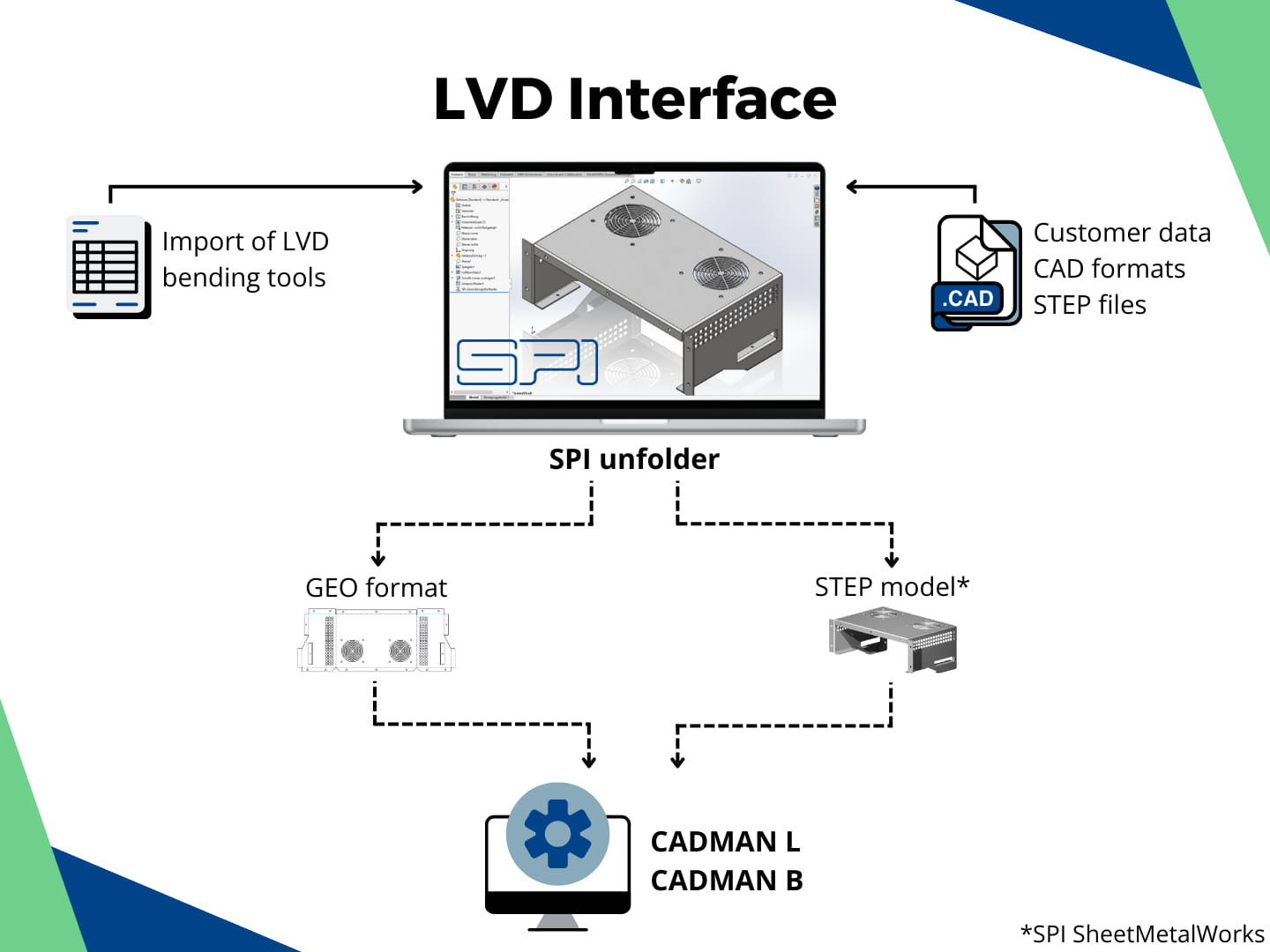

SPI provides the necessary data for programming with CADMAN-B to control LVD machines. The LVD machine control program can process GEO files supplied by the SPI software.

In addition, SPI can provide a manufacturing-ready STEP file with the specific process information (prerequisite: SheetMetalWorks with Solidworks).
